Aviation Light for Tower Crane: Illuminating Safety Above Urban Skies

In modern cities where construction projects frequently reshape skylines, the presence of tall structures like tower cranes introduces new safety challenges for air traffic. As these cranes can reach significant heights—especially in dense urban environments or near flight paths—their visibility becomes a matter of aviation safety. To mitigate collision risks, the installation of an aviation light for tower crane is not only essential but often mandated by aviation authorities. These specialized lights act as aerial warning signals, helping pilots avoid obstacles and enabling safe navigation in and around construction zones.



The Role of Aviation Light for Tower Crane Safety

An aviation light for tower crane is a type of obstruction lighting system designed specifically to mark cranes that may extend into navigable airspace. These lights emit intense, highly visible signals—usually red or white—to warn aircraft during low-light or nighttime conditions.



Crane operations are often temporary but can last for months, making temporary lighting just as critical as permanent structure marking. Without proper lighting, a tower crane could pose a significant hazard, especially for helicopters, low-flying planes, or emergency aircraft in densely built-up areas.

Why Aviation Light for Tower Crane Installations Are Essential

The presence of cranes near airports or flight paths creates potential conflicts with aviation operations. A properly installed aviation light system provides the following safety and regulatory benefits:



Visual awareness: Ensures cranes are visible from long distances in all directions, especially during takeoff and landing operations.



Compliance with regulations: Meets the standards set by agencies like the FAA (Federal Aviation Administration), ICAO (International Civil Aviation Organization), and local civil aviation authorities.

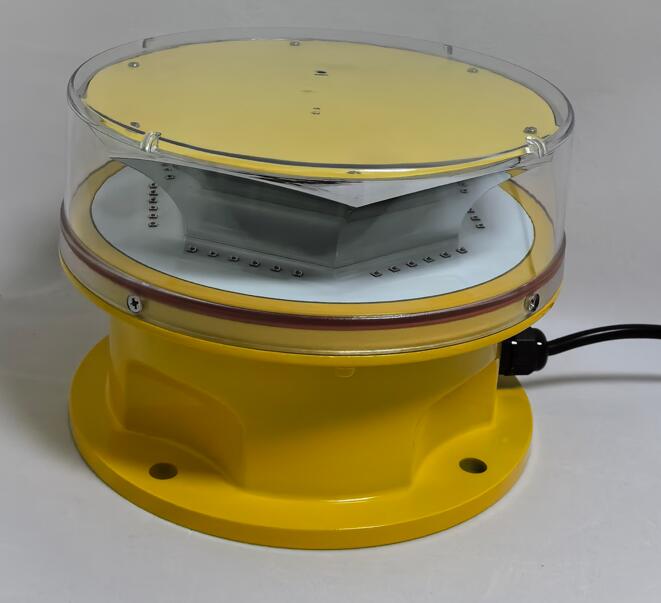

aviation light for tower crane

Risk reduction: Decreases the likelihood of air accidents caused by unseen obstacles.



Operational clearance: Assists in obtaining flight safety clearance for construction projects near airfields.

aviation lights for tower crane

Types of Aviation Lights for Tower Cranes

There are several types of lighting used for tower cranes based on height, location, and operational requirements. Each serves a specific purpose:



1. Low-Intensity Red Lights (Type L-810)

Used on cranes below 150 feet, these steady-burning red LED lights mark the crane’s extremities during nighttime. They are effective in urban environments with reduced ambient darkness.



2. Medium-Intensity Flashing Lights (Type L-864)

These red flashing beacons are typically required for cranes between 150 and 500 feet in height. The flashing pattern increases visibility in variable weather and at greater distances.

aviation light for tower cranes

3. White Strobe Lights (Type L-865)

White strobe lights are used for daytime marking, especially in cases where high visibility is needed in bright sunlight or for structures exceeding 500 feet.



4. Dual Lighting Systems

Combining red lights for night use and white strobes for daytime, dual systems provide continuous, 24-hour marking. This is especially relevant for cranes located in busy flight corridors or near heliports.



Placement and Configuration Guidelines

The proper placement of aviation lights on a tower crane is as important as the light type. Authorities typically require lights to be placed:



At the highest point of the crane, usually on the tip of the boom



On the jib or counter-jib, depending on the crane’s orientation and maximum reach



At the crane’s base or along the vertical mast, to highlight the full height



For rotating cranes, lights must be configured to ensure visibility from all directions, regardless of the boom’s current position.



In addition, if the crane's boom length varies or if the crane is operated in different positions (e.g., luffed or horizontal), lighting must account for the maximum reach.



Compliance with International Standards

The installation of an aviation light for tower crane must align with specific standards, including:



FAA AC 70/7460-1M: Outlines obstruction marking and lighting requirements in U.S. airspace.



ICAO Annex 14: Defines global standards for aerodrome and obstacle lighting.



EASA CS-ADR-DSN: Provides European guidance on obstacle limitation surfaces and marking.



Compliance includes proper intensity, color, flash rate, and placement. Non-compliant lighting may delay project approvals or result in enforcement actions.



Advancements in Lighting Technology

Modern aviation lighting systems for tower cranes incorporate advanced technologies to improve safety, efficiency, and maintainability. These innovations include:



LED-based lighting: Longer lifespan, reduced energy consumption, and better illumination consistency.



Automatic photocell control: Lights turn on at dusk and off at dawn without manual intervention.



Wireless control and monitoring: Enables real-time fault detection and remote operation status updates.



Solar-powered units: Offer flexibility for cranes without reliable power access or where temporary lighting is needed quickly.



These technologies simplify compliance and reduce the burden on construction teams managing crane safety.



Temporary Structures, Lasting Responsibility

Even though tower cranes are temporary installations, aviation safety standards apply from the moment the crane exceeds the threshold for obstruction evaluation. Developers and contractors must coordinate with civil aviation authorities before erecting cranes near protected airspace.



This includes:



Submitting obstruction evaluations



Installing approved lighting



Conducting regular maintenance and inspection



Notifying authorities of lighting outages or changes



Failure to adhere to these responsibilities can result in halted operations or legal liability in the event of an incident.



Case Applications and Urban Airspace Management

In urban centers with high-rise construction, tower cranes often extend above surrounding buildings and into flight paths. This is especially relevant near:



City-center heliports



Hospitals with rooftop helipads



Downtown business districts adjacent to flight corridors



An aviation light for tower crane installations in such zones ensures safe navigation for helicopters and short-range aircraft operating at lower altitudes. These lights are also increasingly important for the integration of new airspace users such as drones and urban air mobility (UAM) aircraft.



Maintenance and Inspection Protocols

To ensure functionality, aviation lights must be inspected routinely. Maintenance requirements include:



Nighttime visibility checks



Lens cleaning to prevent dirt accumulation



Battery or power source testing (for solar units)



Immediate repair or reporting of failures



Regulations typically require that outages be reported within 30 minutes and repaired within a set period, often 15 days.



An aviation light for tower crane is more than just a regulatory requirement—it is a critical component of modern aviation safety infrastructure. As cities expand vertically and airspace becomes increasingly congested, proper crane lighting ensures that progress on the ground does not come at the cost of safety in the skies.



With advances in lighting technology, increased awareness of airspace integration, and global regulatory oversight, the aviation lighting of tower cranes will continue to evolve—supporting construction growth while safeguarding flight operations.
