Detailed introduction
The AO-HP-E1 LED heliport perimeter light lighting system is a state-of-the-art solution designed to enhance safety and visibility for heliports and helipads.
This lighting system is specifically engineered to provide clear delineation of the heliport perimeter. The LED lights offer high brightness and excellent visibility even in low-light conditions. They are energy-efficient and have a long lifespan, reducing maintenance costs and ensuring reliable operation.
The AO-HP-E1 is designed to withstand harsh environmental conditions, including wind, rain, and extreme temperatures. It is easy to install and can be integrated with existing heliport infrastructure.
With its advanced technology and durable construction, this lighting system helps pilots navigate safely during approach and landing. It also alerts ground personnel and nearby observers to the presence of the heliport, enhancing overall safety. Whether for commercial, medical, or emergency operations, the AO-HP-E1 LED heliport perimeter light lighting system is an essential component for ensuring safe and efficient helicopter operations.
Overview:
led heliport perimeter light lighting system heliport helipad landing lights, namely the AO-HP-E1 LED heliport perimeter light for heliport lighting, boast a wide range of applications. It can serve as heliport perimeter light, Heliport TLOF (Touchdown and Lift-Off area) light, FATO (Final Approach and Take-Off areas) light, heliport approach landing light, and more. It can also be utilized as perimeter light for FATO, TLOF, taxiway light, runway light, and flight path lighting. Our helideck lighting and heliport elevated light have a height not exceeding 25 centimeters. There is a fragile coupling in the base connection. In the event that an aircraft accidentally hits the light, the base will break immediately to prevent further damage.
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. Utilize super bright CREE brand LED, offering high intensity while consuming less energy.
2. The input voltage is available in either DC (12 - 48V DC) or AC (100 - 265V AC 50 - 60Hz).
3. Feature a uniquely designed polycarbonate lens that converges light and also provides corrosion resistance and UV protection.
4. The efficient photometric design ensures excellent light distribution, guaranteeing compliance with ICAO and FAA requirements.
5. The base material is die-cast aluminum, which has strong corrosion resistance and provides protection against shock and vibrations, ensuring a long service life.
6. The fragile coupling effectively reduces secondary damage to helicopters.
Specification:
|
Product Name |
led heliport perimeter light lighting system heliport helipad landing lights AO-HP-E1 |
|
Mode NO.: |
AO-HP-E1 |
|
Color: |
Green/yellow/white etc |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
>50cd |
|
Horizontal Output(degrees): |
360 degree |
|
Installation type: |
Elevated (surface installation) |
|
Flashing Characteristics:
|
Fixed light steady burning
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption <5W |
|
Circuit Protection: |
Integrated |
|
Helipad Light Material: |
lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
0.85kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. VHF pilot to ground remote control 2. Infra-Red (IR) light for NVG |

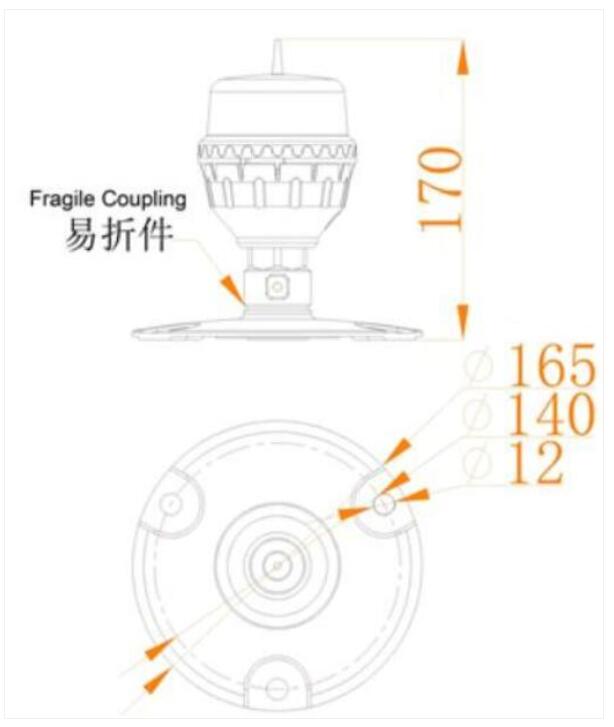

Dimension & Installation:
Applications:
The AO-HP-E1 LED heliport perimeter light lighting system is a highly advanced and essential solution for heliports and helipads.
This lighting system is designed to enhance safety and visibility during helicopter operations. The super bright CREE brand LEDs provide high-intensity illumination while consuming lower energy. With input voltage options of DC (12-48V DC) or AC (100-265V AC 50-60Hz), it offers flexibility in installation.
The unique polycarbonate lens not only converges light but also offers corrosion resistance and UV protection. The efficient photometric design ensures excellent light distribution, meeting ICAO and FAA standards. The die-casting aluminum base material provides strong corrosion resistance, shock and vibration protection, and a long service life.
The AO-HP-E1 can be used as heliport perimeter lights, helipad landing lights, and for various applications such as marking touchdown and lift-off areas (TLOF) and final approach and take-off areas (FATO). Additionally, it can serve as taxiway lights and flight path lighting. The fragile coupling in the base connection reduces the risk of secondary damage to helicopters in case of accidental impacts. Overall, the AO-HP-E1 is a reliable and essential lighting system for safe helicopter operations.
